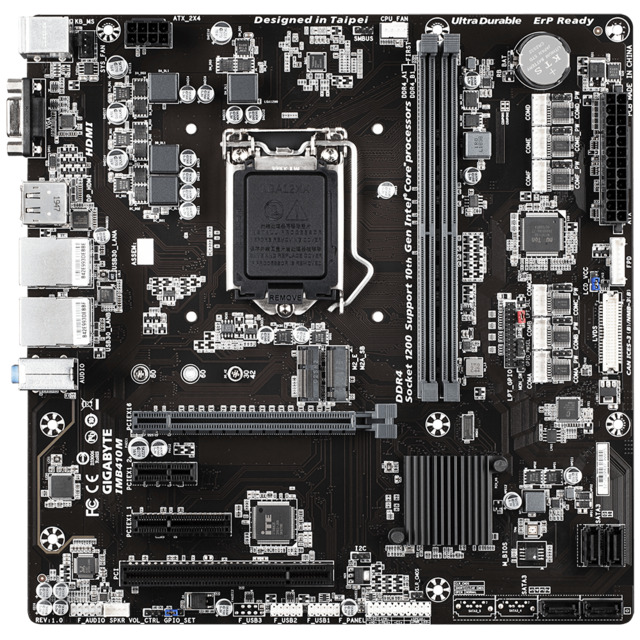

Gigabyte GA-IMB410M (rev. 1.0)
LGA-1200ITX (Embarcado)
The Gigabyte GA-IMB410M (rev. 1.0) is a ITX (Embarcado) motherboard for the LGA-1200 socket.
GA-IMB410M (rev. 1.0) motherboard specifications
This Gigabyte GA-IMB410M (rev. 1.0) specification page covers socket, chipset, form factor, VRM, memory, storage and networking. Values are shown only where they are recorded in the source data.
SocketLGA-1200
Form factorITX (Embarcado)
V-Core phases3
VRM phases4 real
PWM controllerIntersil ISL-95866 7-Fases (em modo 3+1) (Possivelmente)
MOSFETVishay SiRA88DP 30V, 45.5A, 6.7mΩ (Alta x1) & SiRA12DP 30V, 60A, 4.3mΩ (Baixa x2)
RAM slots2
Max RAM64 GB
RAM speed2133MHz à 2933MHz
SATA ports4
M.2 slots1
LANRealtek® 1GbE (x2)
Wi-FiYes
