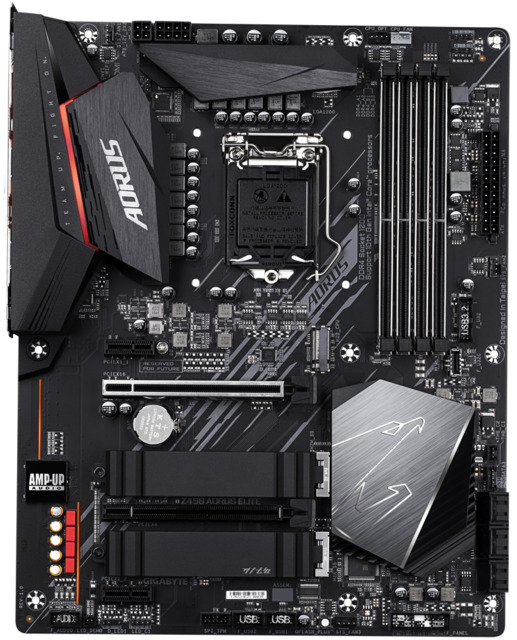

Gigabyte Z490 AORUS ELITE
LGA-1200Z490Full ATX
The Gigabyte Z490 AORUS ELITE is a Full ATX motherboard for the LGA-1200 socket on the Z490 chipset, with a extreme (i9 oc 420w+) VRM.
Z490 AORUS ELITE motherboard specifications
This Gigabyte Z490 AORUS ELITE specification page covers socket, chipset, form factor, VRM, memory, storage and networking. Values are shown only where they are recorded in the source data.
SocketLGA-1200
ChipsetZ490
Form factorFull ATX
VRM tierExtreme (i9 OC 420W+)
V-Core phases12
VRM phases12 real
PWM controllerIntersil ISL69296 12-Fases (em modo 12+0+0) Renesas RAA229001 2-Fases (em modo 1+1) (Vcc-GT + Vcc-SA)
MOSFETVishay Integrated Power Stage VRPower (DrMOS) SiC654 50A
RAM slots4
Max RAM128 GB
RAM speed2133MHz à 5000MHz
SATA ports6
M.2 slots3
LANRealtek® 2.5GbE
