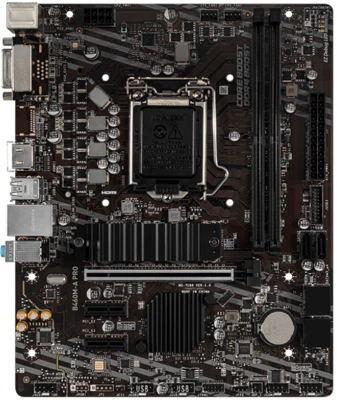

MSI B460M-A PRO
LGA-1200B460micro-ATX
The MSI B460M-A PRO is a micro-ATX motherboard for the LGA-1200 socket on the B460 chipset, with a basic (<100w) VRM.
B460M-A PRO motherboard specifications
This MSI B460M-A PRO specification page covers socket, chipset, form factor, VRM, memory, storage and networking. Values are shown only where they are recorded in the source data.
SocketLGA-1200
ChipsetB460
Form factormicro-ATX
VRM tierBasic (<100W)
V-Core phases4
VRM phases5 real
PWM controllerAguardando Informações
MOSFETAguardando Informações
RAM slots2
Max RAM64 GB
RAM speed2133MHz à 2933MHz
SATA ports6
M.2 slots2
LANRealtek® RTL8111H 1GbE
