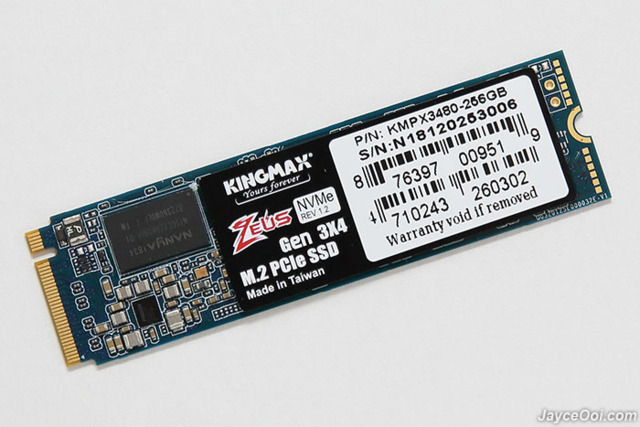

Kingmax PX3480
PCIe 3.0 x4 M.2 2280 250GB, 500GB, 1TB
The Kingmax PX3480 is an SSD, with a DRAM cache, offered in 250GB, 500GB, 1TB.
PX3480 SSD specifications
This Kingmax PX3480 SSD spec sheet covers rated SSD speed, DRAM cache, TLC NAND type, controller, capacity-specific part numbers. Values are shown only where they are recorded in the source data.
InterfacePCIe 3.0 x4
Form factorM.2 2280
ControllerPhison PS5012-E12-27
NANDTLC
CacheDRAM
Max sequential3400 / 3000 MB/s
Warranty3 years
Released2019
Capacities & rated speed
| Capacity | Part number | Read MB/s | Write MB/s | Warranty |
|---|---|---|---|---|
| 256GB | KMX3480-256GB | 3000 | 1000 | 3 |
| 512GB | KMX3480-512GB | 3400 | 1950 | 3 |
| 1TB | KMX3480-1TB | 3400 | 3000 | 3 |
Endurance (TBW/DWPD) for this drive is not recorded in our source data.
