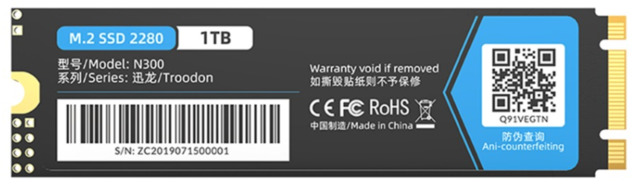

Orico TROODON N300
SATA III M.2 2280 128GB, 250GB, 500GB, 1TB
The Orico TROODON N300 is an SSD, DRAM-less (HMB), offered in 128GB, 250GB, 500GB, 1TB.
TROODON N300 SSD specifications
This Orico TROODON N300 SSD spec sheet covers rated SSD speed, DRAM-less design, TLC NAND type, controller, capacity-specific part numbers, TBW endurance. Values are shown only where they are recorded in the source data.
InterfaceSATA III
Form factorM.2 2280
ControllerSilicon Motion SM2258XT ou Silicon Motion SM2259XT (Possivelmente 2259XT) (1-Core, 4-Canais, 4-CE)
NANDTLC, 64L
CacheDRAM-less (HMB)
Max sequential560 / 528 MB/s
Endurance400 TBW, 0.219 DWPD
Warranty5 years
Released2019
Capacities & endurance
| Capacity | Part number | Read MB/s | Write MB/s | TBW | DWPD | Warranty |
|---|---|---|---|---|---|---|
| 128GB | TROODON N300 128GB | 540 | 490 | 50 | 0.214 | 5 |
| 256GB | TROODON N300 256GB | 550 | 508 | 100 | 0.214 | 5 |
| 512GB | TROODON N300 512GB | 560 | 516 | 200 | 0.214 | 5 |
| 1TB | TROODON N300 1TB | 560 | 528 | 400 | 0.219 | 5 |
