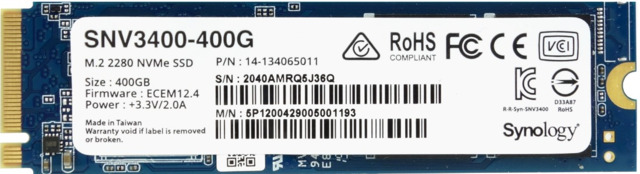

Synology SNV3400
C Mid-range PCIe 3.0 x4 M.2 2280 400GB
The Synology SNV3400 is a mid-range PCIe 3.0 x4 drive, with a DRAM cache, offered in 400GB.
SNV3400 SSD specifications
This Synology SNV3400 SSD spec sheet covers rated SSD speed, DRAM cache, TLC NAND type, controller, capacity-specific part numbers, TBW endurance. Values are shown only where they are recorded in the source data.
InterfacePCIe 3.0 x4
Form factorM.2 2280
ControllerPhison PS5012-E12DC
NANDTLC, 64L
CacheDRAM
Max sequential3100 / 550 MB/s
Endurance500 TBW, 0.685 DWPD
Warranty5 years
Released2020
Capacities & endurance
| Capacity | Part number | Read MB/s | Write MB/s | TBW | DWPD | Warranty |
|---|---|---|---|---|---|---|
| 400GB | SNV3400-400G | 3100 | 550 | 500 | 0.685 | 5 |
